Rockarmor Steel Gt Hoop Bull Bar (option for Winch and Spotties combo) to suit Ford Ranger Raptor Next Gen 2023-2024 (Full Bar Replacement)

Rockarmor Steel Gt Hoop Bull Bar (option for Winch and Spotties combo) to suit Ford Ranger Raptor Next Gen 2023-2024 (Full Bar Replacement)

Designed & Tested in Australia, Rockarmor’s design team left no stone unturned, making sure the Next Gen Ford Raptor GT bull bar would cater for the true 4x4 enthusiast.

With a combination of aggressive lines & sleek touches, which is sure to seek attention from fellow car lovers, Rockarmor’s engineers intergrated every essential feature that benefits all Ford Raptor owners for all types of terrains & situations they may encounter

The Rockarmor GT Bumper, has been engineered to be compatible with your vehicle safety features which include the front safety camera & bumper sensors. The GT Bumper is finished in a highly durable black powder coat finish, Optional colour matching is available through your local Rockarmor Distributor.

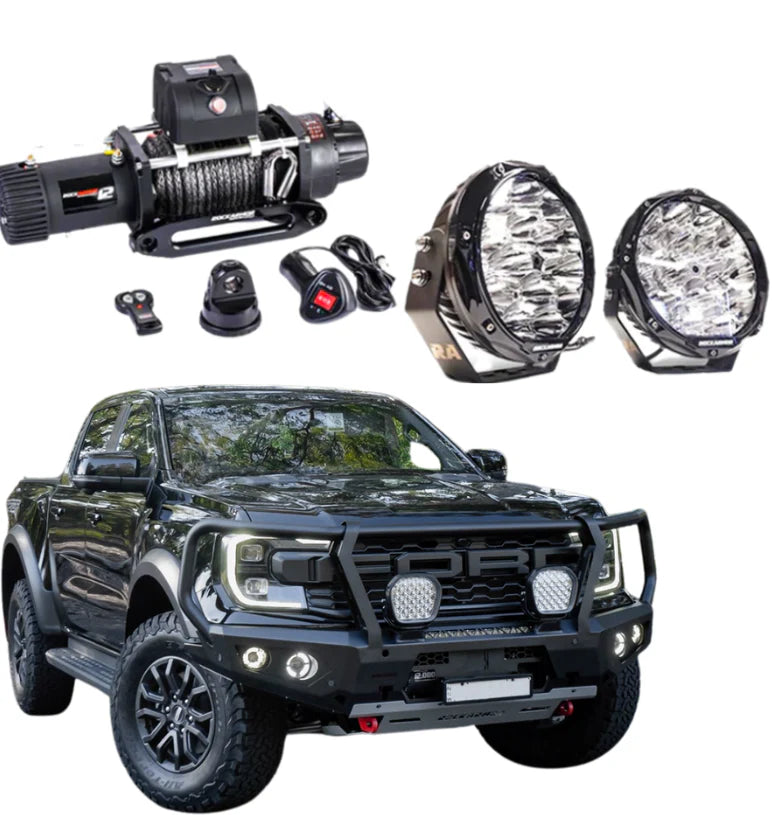

ROCKARMOR GT HOOP STEEL BULLBAR COMBO PACK TO SUIT FORD RANGER RAPTOR 2023-2024

Rockarmor GT Steel Hoop Bullbar (No bumper cut required)

Rockarmor 12,000 pound Winch (wireless controller & synthetic winch rope)

Rockarmor 9" LED Phantom Spotlights - (with wiring loom and internal switch)

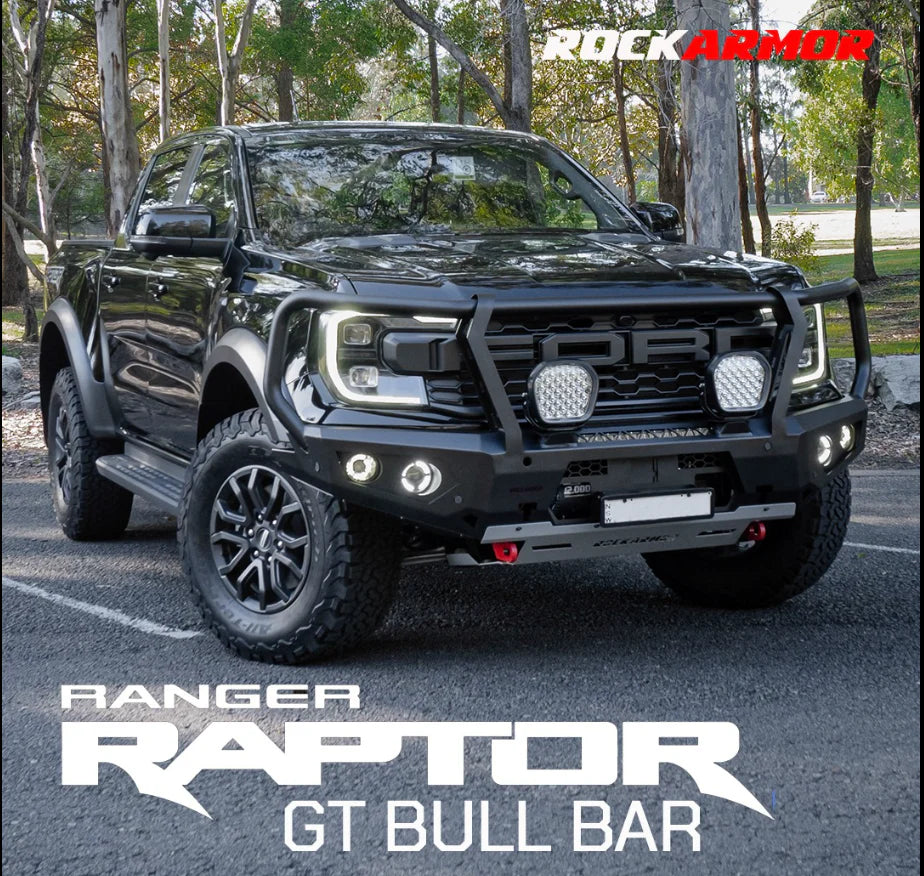

ROCKARMOR GT HOOP STEEL BULL BAR TO SUIT FORD RANGER RAPTOR (Full Bar Replacement) & Built In Rated Recovery Point

Features & Specifications:

• Built in 3.2Tonne Rated Recovery Points
• 52 mm Top cross tube for maximum frontal protection
• Durable 2.8mm High Quality steel construction for maximum protection
• Designed for high approach angles
• Built in LED FOG lights & LED Indicator, compatible with factory controls
• Extended centre Bash Plate Included
• ADR Complied Air bag compatible mounting system
• Factory Sensor & Front Camera Compatible

• Side under Protection panels Included
• Twin Slotted Antenna Mounts located on top Cross Tube
• Twin Hi-Lift jack points
• Front Protection Buffers
• Accommodation for Electric Winch up to 12,000 pound
• Laser cut Holes to accommodate for driving lights
• Shot blasted, Chemical Washed
• Finished off in a high quality black powder coat finish

ROCKARMOR PHANTOM 9" LED DRIVING LIGHTS

Rockarmor’s latest innovation, the Phantom 9 Lights are rugged off-road champions designed to light up the darkest highways and remote tracks, offering unparalleled performance and durability. Built to withstand the harshest conditions, these lights are dustproof and waterproof, ensuring reliability in any environment! Experience exceptional long-distance visibility, providing you with the confidence to conquer any terrain!

TECHY STUFF

• IP RATING: IP68
• DISTANCE: 1 LUX @ 1400 METRES
• POWER: 396 WATTS PER PAIR
• LED TYPE: 33 X OSRAM LEDS
• COLOUR TEMP: 6500K
• LUMENS: 13,000 EFFECTIVE LUMENS
• FRAME: FULLY ADJUSTABLE 60 DEGREE ALUMINIUM FRAME
• LENS: POLYCARBONATE
• COOLING: HIGH SPEED PASSIVE COOLING SYSTEM
• DAY LIGHT RUNNING LIGHT: BUILT IN

WHAT'S IN THE BOX

• MOUNTING HARDWARE
• PHANTOM COVERS
• 2 X LED DRIVING LIGHTS
• WIRING HARNESS WITH INTERNAL SWITCH

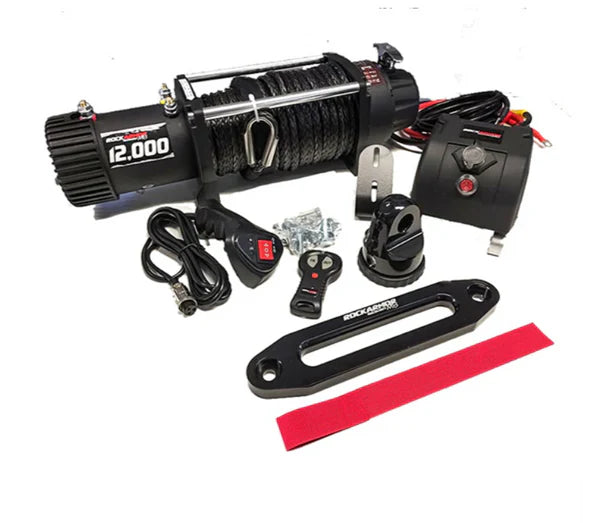

ROCKARMOR RECOVERY M8 12,000 Pound Winch

• 5 Year Manufacturers Warranty
• 7.2HP Motor
• IP67 Rated (2 Hours Fully Submersible)
• Wireless Controller (inbuilt receiver)
• Controller with Extension Lead
• Rockarmor Alloy Hawse Fairlead
• Synthetic Winch Rope Pro Link
• Control Box Mounting Bracket
• Hand Saver Strap
• Installation Guide Book

Specification

• Line Pull:  5,443kgs / 12,000lbs

•   Motor: Series Wound DC12V / 7.2HP
• Gear Train: 3 Stage Planetary
• Gear Ratio: 216:1
• Free Spooling Clutch with Rotating Gear Ring
• IP67 Rated (2 Hours Fully Submersible
• Installation Guide Book
• Synthetic Winch Rope: 9.5mm x 28 metres
• Wireless Receiver: Built into the Control Box
• Isolator Switch: Built into the Control Box
• Drum Size: 64mm x 224mm
• Weight of Winch: 26kgs
• Mounting Bolt Pattern: 254mm x 114.3mm
• Dimensions: 535 X 162 X 170MM
• Warranty: 5 Years Limited Electrical & Mechanical Combo Wieght:120kg
